Tiger Beam Clamp with Suspension Bar

Tiger Beam Clamp with Suspension Bar.

These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991.

• Range from 1.0t to 10.0t
• Multidirectional adjusting screw spindle ensures a high clamping force to the various flange sizes within its capacity
• 5:1 Safety factor

• Quick and versatile rigging point for hoisting equipment
• Wide Beam flange adjustment range - Beam width range 75mm to 350mm
• Optional locking device

• Low headroom because of the built in anchor point
• Operating temperature of -50° to +50°

• Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

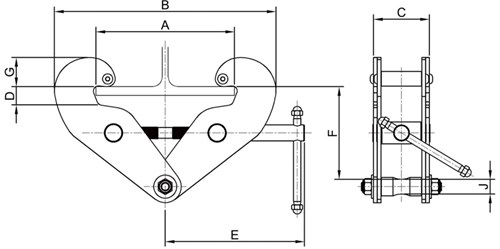

  PRODUCT CODE	CAPACITY (TONNE)	DIMENSIONS (MM)											WEIGHT (KG)
  		A	B	C	D	E	F	G	H	J	K	L
  BC-0100	1	75-210	182-328	77	26	190	144-117	52-38		20			4
  BC-0200	2	75-210	182-328	85	26	190	144-117	52-38		20			4.5
  BC-0300	3	75-305	214-460	107	35	240	224-179	58-40		22			8
  BC-0500	5	75-305	214-460	121	35	240	224-175	58-40		28			10
  BC-1000	10	120-350	295-510	182	36	300	222-171	71-54		43			24.5
