Clamps to existing scaffolding structure, lift and move loads up to 2000kg, cantilever over the end of the scaffolding, available in straight and curved sections. Change direction with junction switches, suspend a bridge from 2 runways to create a crane system, Supplied in kit form for ease of installation, extension and relocation, Some components approved to EN795 for fall arrest.

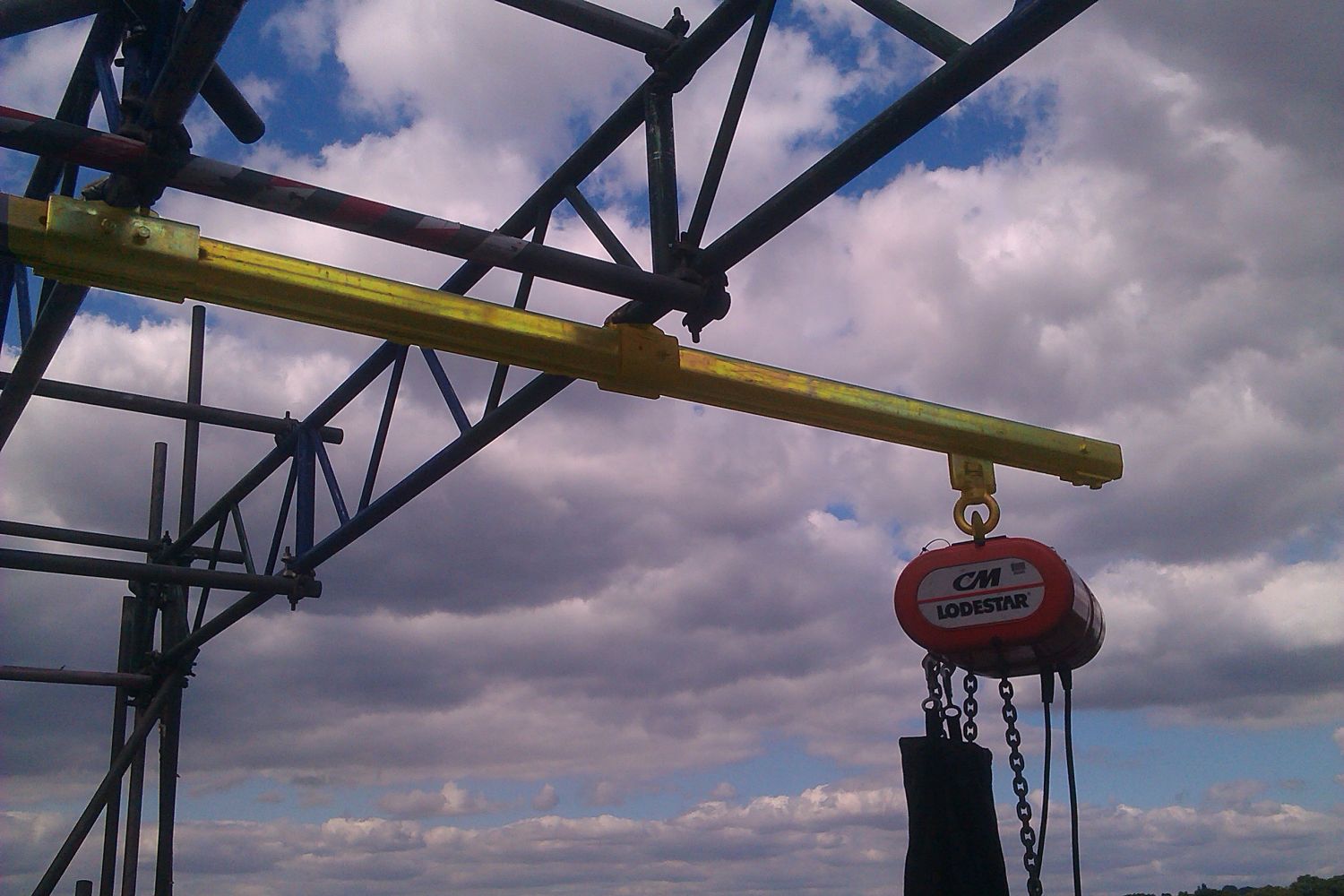

The Scaffolding Runway System is unique to Niko Ltd and provides a solution for lifting and moving loads throughout a scaffolding support structure.
Features
Product Range
|
Niko Profile |
SWL |
Track support centres |
Max. Cantilever |
|
24.000 |
125kg |
1m |
0.35m |
|
25.000 |
250kg |
1.5m |
0.4m |
|
26.000 |
500kg |
1.5m |
0.5m |
|
27.000 |
1000kg |
1.5m |
0.5m |
|
27.000 * |
1600kg |
1m |
0.3m |
* Requires double load trolley
